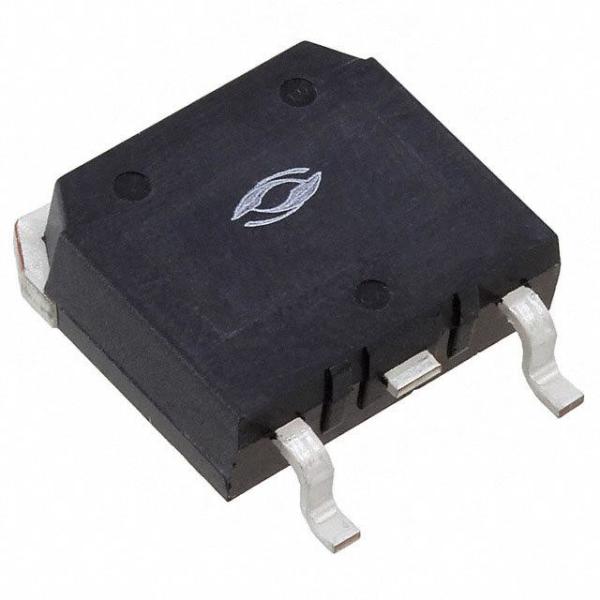

APT25GR120SD15 IGBT Power Module Transistors IGBTs Single

Product Categories

KZ TECHNOLOGY (HONGKONG) LIMITED

Contact Now

Part Number : APT25GR120SD15

Manufacturer : Microsemi Corporation

Description : IGBT 1200V 75A 521W D3PAK

Category : Transistors - IGBTs - Single

Family : Transistors - IGBTs - Single

Place of Origin : Original

MOQ : Negotiable

Price : Negotiable

Delivery Time : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Contact Now

Part Status	Active
IGBT Type	NPT
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	75A
Current - Collector Pulsed (Icm)	100A
Vce(on) (Max) @ Vge, Ic	3.2V @ 15V, 25A
Power - Max	521W
Switching Energy	742µJ (on), 427µJ (off)
Input Type	Standard
Gate Charge	203nC
Td (on/off) @ 25°C	16ns/122ns
Test Condition	600V, 25A, 4.3 Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package	D3Pak
Shipment	UPS/EMS/DHL/FedEx Express.
Condtion	New original factory.
